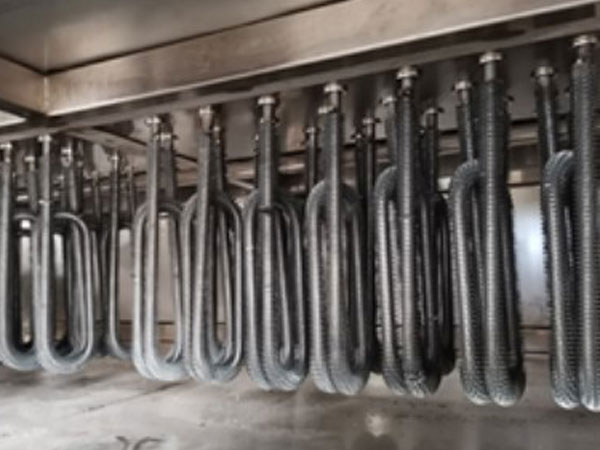

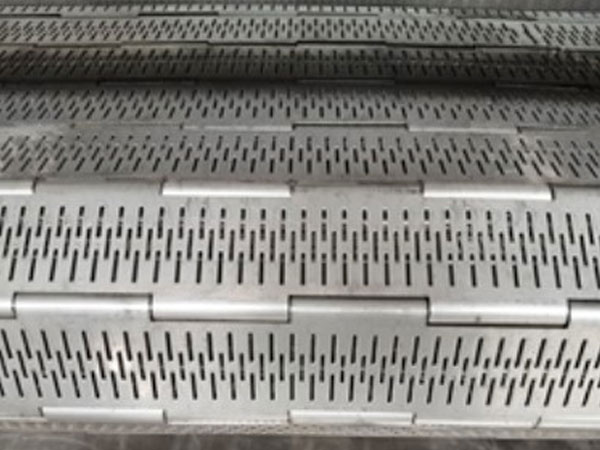

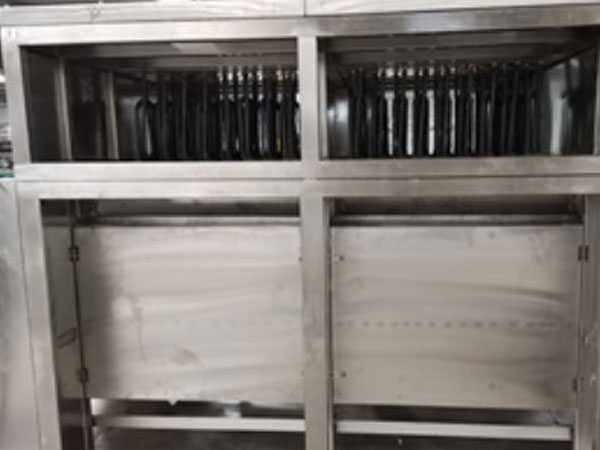

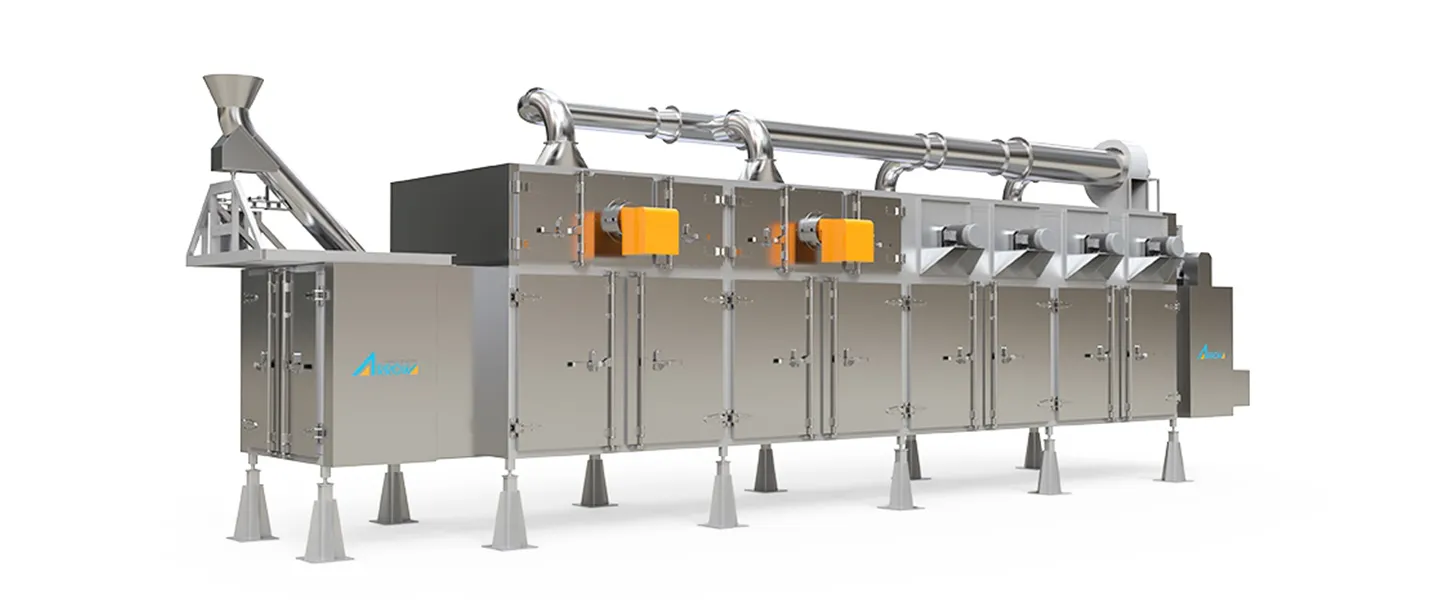

It consists of a transmission system hot air drying system,hot air circulation system,dehumidification system and distribution system.the transmission system adopts a multi-layer reciprocating design with an independent frequency conversion control system for each layer allowing adjustment of drying time according to different products.Multip heating methods are available,including electricity steam and natural gas with flexible configuration.The hot air circulation system uses cross-circulation and side air blowing with a forced air path design that penetrates materials in both upper and lower directions.This improves the penetration performance of hot air into materials and directly enhances drying efficiency.
Using corn, wheat, oats and other multiple grains as raw materials, it is matured and formed by a high-quality twin-screw extruder. The product is crispy and has high nutritional value, suitable for people of all ages.
Widely used for drying (stabilizing, cooling) treatment of pellet, flake and strip materials in feed and food industries.
Adopt hot air circulation bi-directional cross flow method, equipping with moisture removing fan, the wind direction forcibly penetrates the materials from top to bottom and the hot air discharges the materials moisture.
Effectively solve the bulking aquatic feed and pellet feed or food curing, drying, pa仆icles reach the ideal water resistance, improve grain appearance quality.
Internal circulating hot air system, low energy consumption, low cost, good reliability.
Corn flakes, rice flakes, whole wheat flakes, breakfast cereals, gluten, instant cereals, crispy cereals, fruit cereals, custard stars, honey rings, high fiber whole wheat fiber, whole grains dietary fiber cereals
