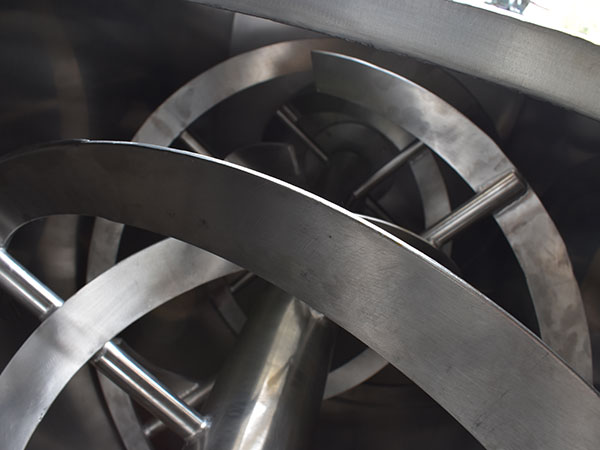

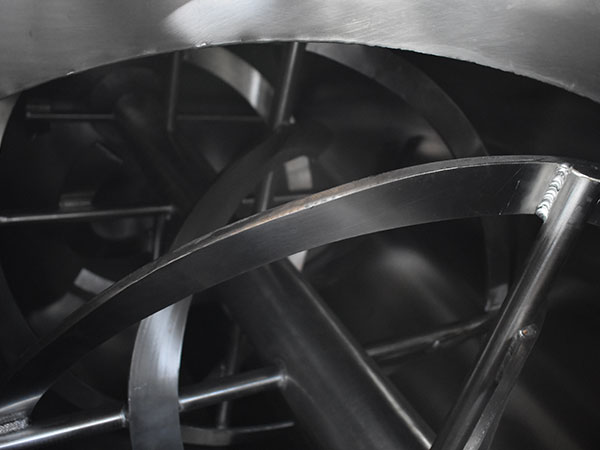

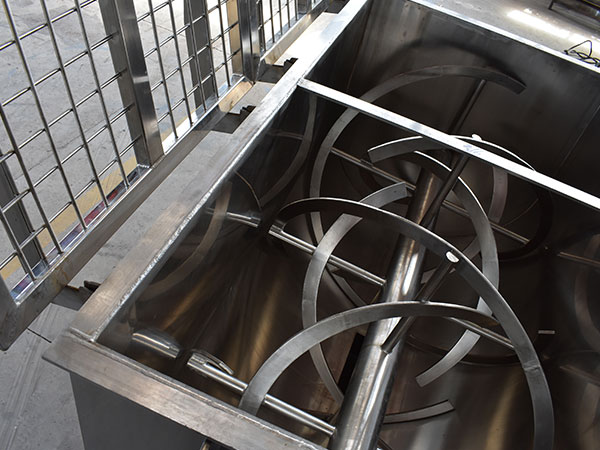

This horizontal ribbon mixer is designed for batch mixing of feed ingredients and powdered materials. It combines a U-shaped horizontal trough with an inner and outer helical ribbon agitator to distribute ingredients evenly throughout the batch.
The outer ribbon moves material in one direction while the inner ribbon moves it in the opposite direction. This counterflow action, combined with radial movement, promotes thorough blending within short mixing cycles. Adjustable clearance between the rotor and housing helps minimize unmixed areas, while a full-length bottom discharge door reduces material residue after discharge.
| MODEL | POWER | VOLUME |
| WLDH-0.3 | 4 kW | 300 L |
| WLDH-0.5 | 7.5 kW | 500 L |
| WLDH-1 | 11 kW | 1000 L |
| WLDH-1.5 | 15 kW | 1500 L |
| WLDH-2 | 30 kW | 2000 L |
| WLDH-8 | 55 kW | 8000 L |
Using corn, wheat, oats and other multiple grains as raw materials, it is matured and formed by a high-quality twin-screw extruder. The product is crispy and has high nutritional value, suitable for people of all ages.
It is suitable for mixing powdery materials in feed factories, so that the components of the mixture are evenly distributed and ensure the quality of compound feed.

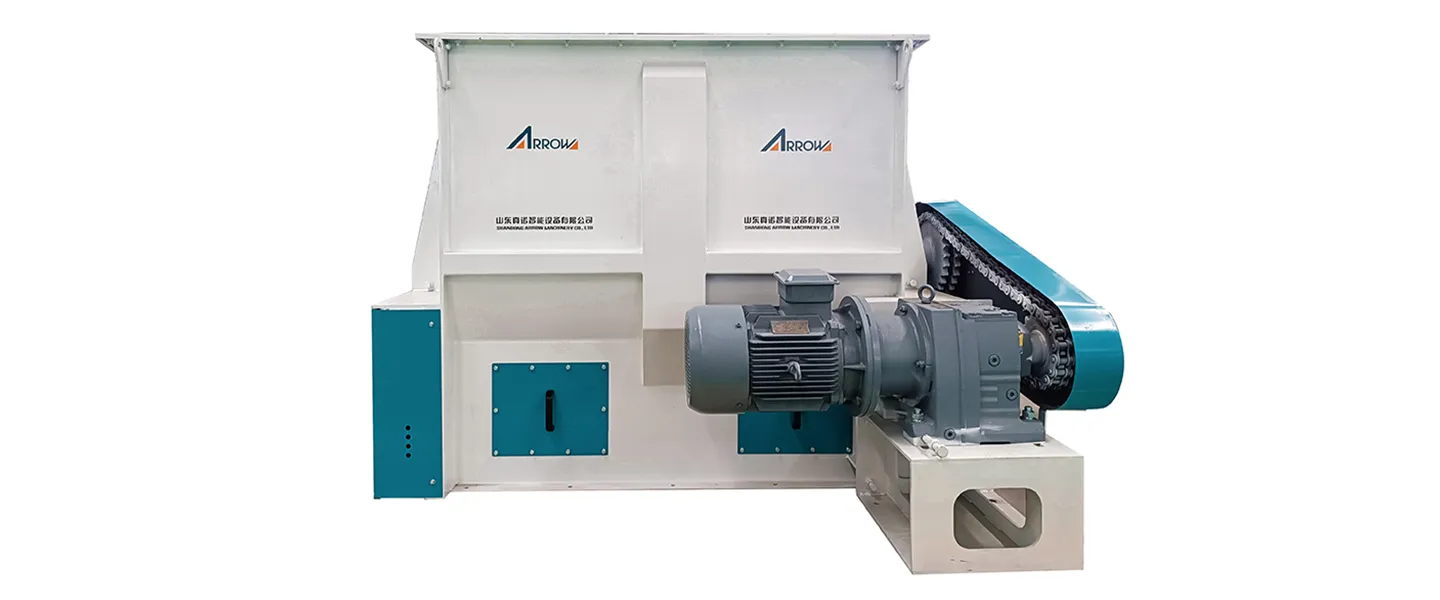

The SLHY mixer is a horizontal and batch mixer with a novel rotor structure, no mixing dead angle, and good mixing uniformity.
The gap between the rotor and the casing can be adjusted, and the bottom is a full-length door to discharge material, and the material residue is small.
The packing seal prevents material leakage at the two shaft ends.
Corn flakes, rice flakes, whole wheat flakes, breakfast cereals, gluten, instant cereals, crispy cereals, fruit cereals, custard stars, honey rings, high fiber whole wheat fiber, whole grains dietary fiber cereals
